Material width adjustment gear wheel device has unique design,providing the operator more secure,efficient,simple feeding setting adjustment
 |
| Quantity: | |
|---|---|
LMC4
Jieda
Specifications:
Item/Model | LMC4-600F | LMC4-800F | LMC4-1000F | LMC4-1300F |
Coil Width(mm) | 70-600 | 70-800 | 70-1000 | 70-1300 |
Coil Thickness(mm) | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 |
Coil Inside Diameter (mm) | 508 | 508 | 508 | 508 |
Coil Outside Diameter (mm) | 1400 | 1400 | 1400 | 1400 |
Coil Load(kg) | 5000 | 5000 | 7000 | 8000 |
Feeding Speed | 16m/min | 16m/min | 16m/min | 16m/min |
Straightening Roller | Upper6 Lower5 | Upper6 Lower5 | Upper6 Lower5 | Upper6 Lower5 |
Feeding Roller | Upper1 Lower1 | Upper1 Lower1 | Upper1 Lower1 | Upper1 Lower1 |
Main Motor | AC7.5KW | AC7.5KW | AC11.0KW | AC15KW |
Decoil Expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Decoil Motor | 3.7KW | 3.7KW | 5.7KW | 5.5KW |
Straightening Performance(for normal material)
Coil Thickness(mm） | LMC4-600F | LMC4-800F | LMC4-1000F | LMC4-1300F |
0.8-2.3 | 600 | 800 | 1000 | 1300 |
2.8 | 600 | 800 | 933 | 933 |
3.2 | 600 | 714 | 714 | 714 |
4.0 | 457 | 457 | 457 | 457 |
4.5 | 361 | 361 | 361 | 361 |
5.0 | 293 | 293 | 293 | 293 |
6.0 | 203 | 203 | 203 | 203 |
The above figures are the material with yield strength of 245N/m㎡ Max
Straightening Performance(for high tensile strength material)
Coil Thickness(mm） | LMC4-600F | LMC4-800F | LMC4-1000F | LMC4-1300F |
0.8-2.3 | 600 | 800 | 1000 | 1300 |
2.8 | 600 | 800 | 933 | 933 |
3.2 | 600 | 714 | 714 | 714 |
4.0 | 457 | 457 | 457 | 457 |
4.5 | 361 | 361 | 361 | 361 |
5.0 | 293 | 293 | 293 | 293 |
6.0 | 203 | 203 | 203 | 203 |
The above figures are the material with yield strength of 600N/m㎡ Max

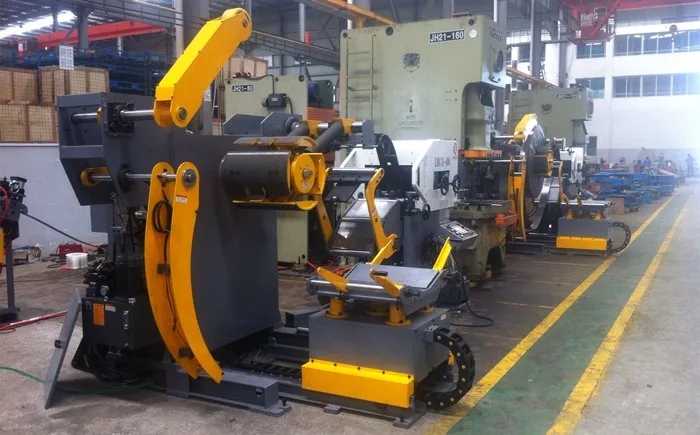

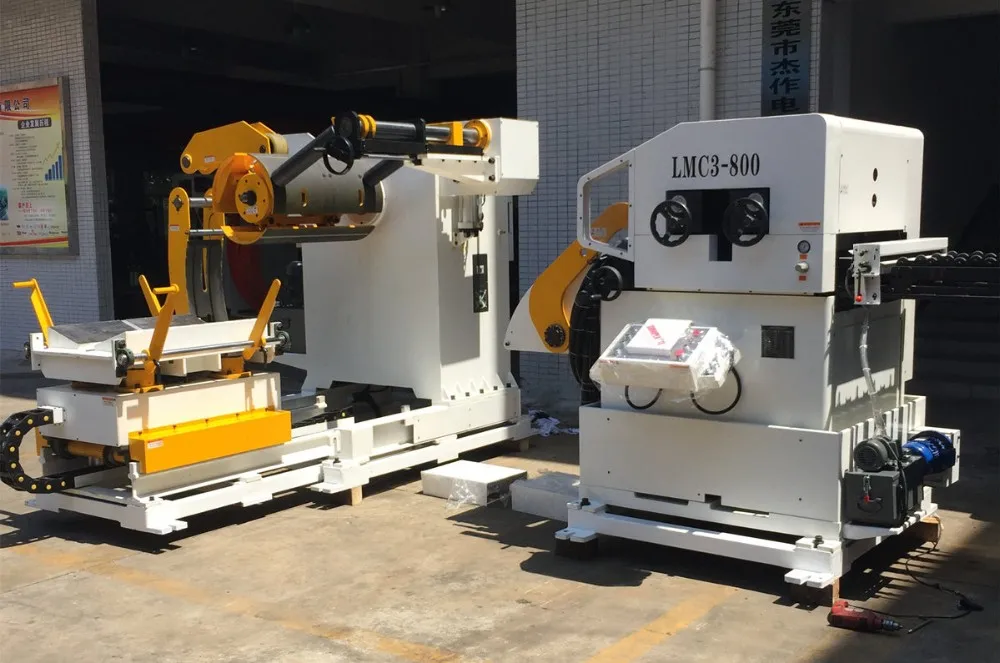

3 in 1 feeding machine combine the feeding straightening decoiling as a whole, widely used in punching machine equipment, LMC3-600 models for 0.3-4.5mm thickness of the material used,The plate is 70-600mm, the coil weight is 5000kg, the maximum material length 500mm, the main motor is AC5.5,common in electrical accessories, hardware, electronics and other industries
The choice of a machine, is to choose a profession, Jieda punching machine automation equipment, machinery manufacturers trusted experts, 20 years experience for our excellence, design and manufacture of machines, each screw fittings are carefully checked.
Dear customer, if this can not meet your requirements, you can let our customer service to recommend other models
1.Dongguan city jada machinery co., LTD. Is a collection of independent design, manufacture, sales and services in a medium-sized enterprise, changan town, dongguan city, which was established in 1998, professional production and marketing automation punch surrounding equipment properly
2.The company's business mainly includes the triad feeder, feeder, automatic air tape feeder, roller machine, terminal machine, the machine, the combined correction equal series products
3.My company has 2 square meters production site, processing precision machinery more than 30 Taiwan, outstanding more than 100 employees and more than 20 skilled engineers, and has a number of national intellectual autonomy, strategic partners including byd, Toyota, tianjin faw, the Great Wall automobile, geely automobile, haier, gree, midea, hisense and other famous enterprises
4.The company has been adhering to the "honesty, keep promise" for the purpose of the service, in order to "quality first, customer first, technology innovation, sustainable improvement, sustained development, mutual benefit and co-prosperity" concept of cooperation, in the country have high popularity in the industry, welcome business people from all walks of life to come to visit factory and order products
Material width adjustment gear wheel device has unique design,providing the operator more secure,efficient,simple feeding setting adjustment
Large straightening roll adjustment hand wheels has been adopted.symbols are used for the indicators,improving repeatability and permitting easy numerical control setting
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* See if the machine is installed
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24 hours online consultation to solve the problem
We cooperate with BYD, the largest auto manufacturer in China.

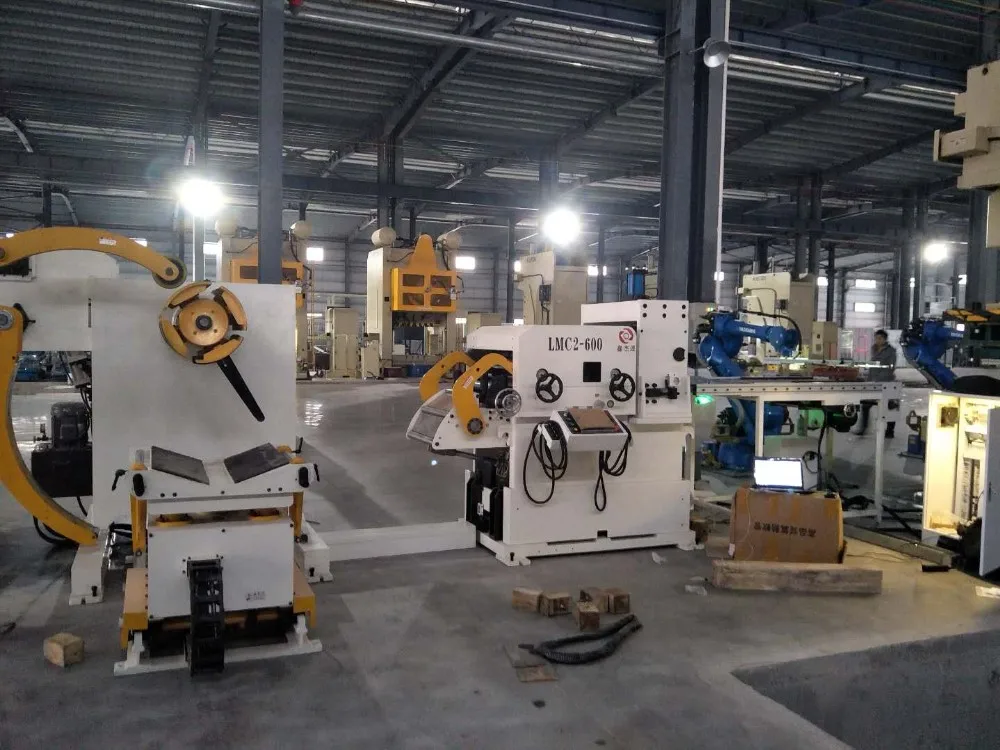

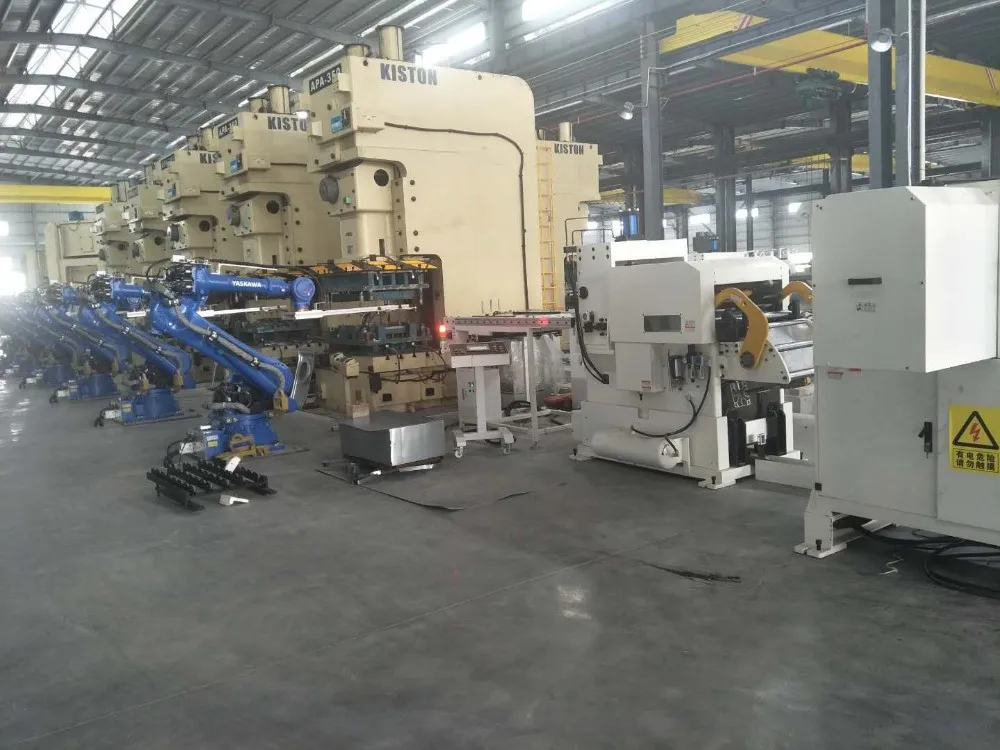

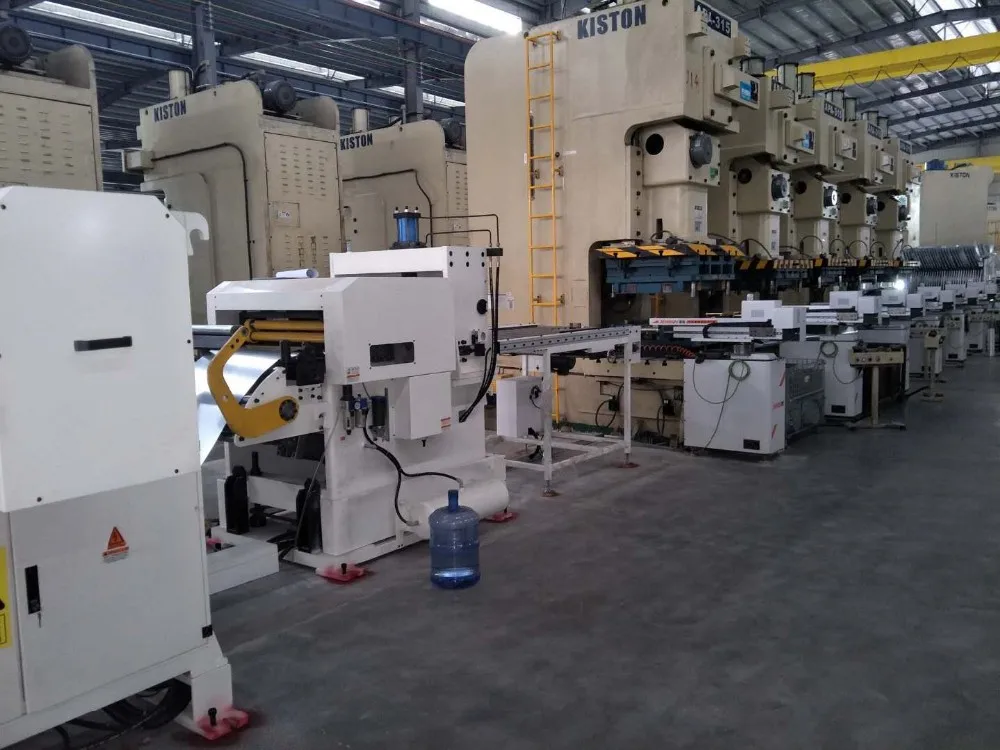

We have automated the unsupervised process and connected to the robot
